Relays/Valves
Booster Relay IL100/XT240
 | ・Used when the piping distance between the instrumentation and operational area is long, or when the operational area has a large capacity ・Can help accelerate actuation speed considerably |
| Series | Port size | Input/Output | Input/Output pressure |
|---|---|---|---|
| IL100 | Rc1/4, 3/8 | 1：1 | 0.7MPa |
| XT240 | Rc. NPT 1/4 (SIG), 1 (SUP. OUT) | 1：1 | 0.7MPa |
■Maximum flow rate: Approx.6000 L/min (ANR)

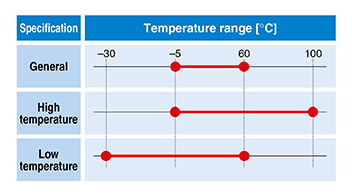

■Fluid temperature

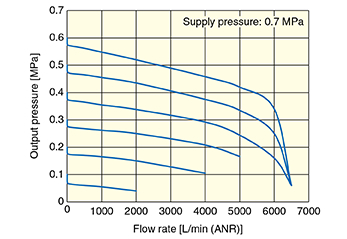

■Flow-rate characteristics

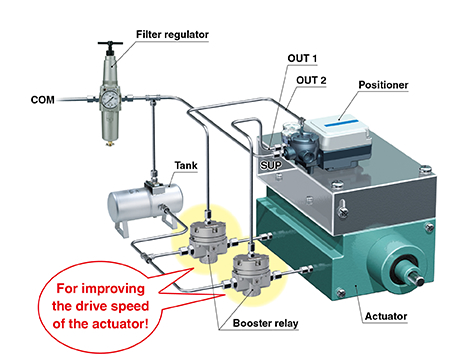

■Application Example

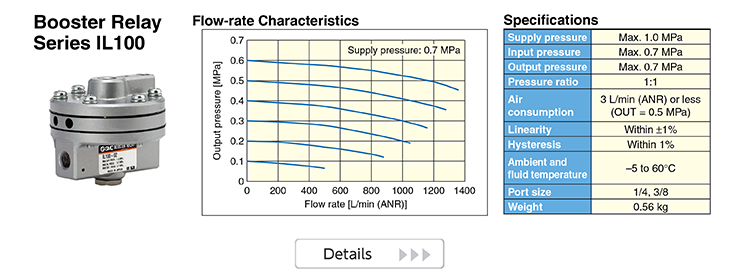

■Related Equipment
Booster Relay IL100/XT240
- Product Code: IL100/XT240 Booster Relay
- Availability: In Stock
-
-
